The i-gel® Plus-A is ideal for use in anaesthesia and represents one of the most significant advances in the design of supraglottic airways since the original i-gel® was introduced in 2007. It combines all the features and benefits of original i-gel® with a number of key product enhancements to help improve performance and safety and optimise ease of use.
Related Pages
i-gel® Plus-A product improvements

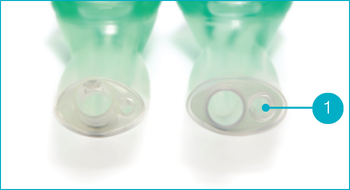

Larger gastric channel to enhance patient safety
The diameter of the gastric channel has been increased to allow for the insertion of a larger suction tube and to help optimise management of regurgitant fluid, thereby potentially reducing the risk of aspiration and increasing patient safety. The maximum size of suction tube that can be passed down the gastric channel for each size of i-gel® Plus-A in comparison to original i-gel® is shown below.
| Size of device | Original i-gel™ | i-gel Plus-A |
| 3 | 12FG | 16FG |
| 4 | 12FG | 18FG |
| 5 | 14FG | 18FG |
1. i-gel® Plus-A
New intubation ramp to optimise use as a conduit for intubation
An intubation ramp is provided in the airway channel where the channel exits in to the bowl of the non-inflatable cuff, helping to ensure that when the device is used as a conduit for intubation (with fibreoptic guidance), the tracheal tube exits the i-gel® Plus-A at the optimal angle to allow reliable and safe passage through the vocal cords and into the trachea.
1. i-gel® Plus-A

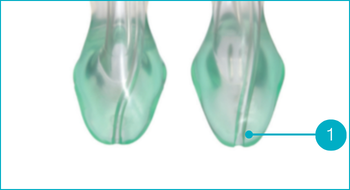

Longer cuff tip to enhance the oesophageal seal
i-gel® Plus-A incorporates a small increase in the length of the cuff tip. This may help to increase the oesophageal seal and in combination with the larger gastric channel, provide improved protection against aspiration.
1. i-gel® Plus-A

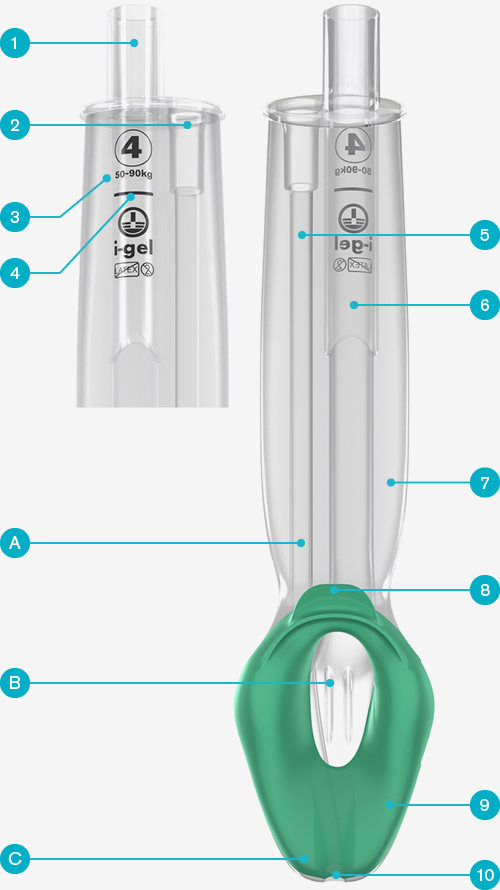

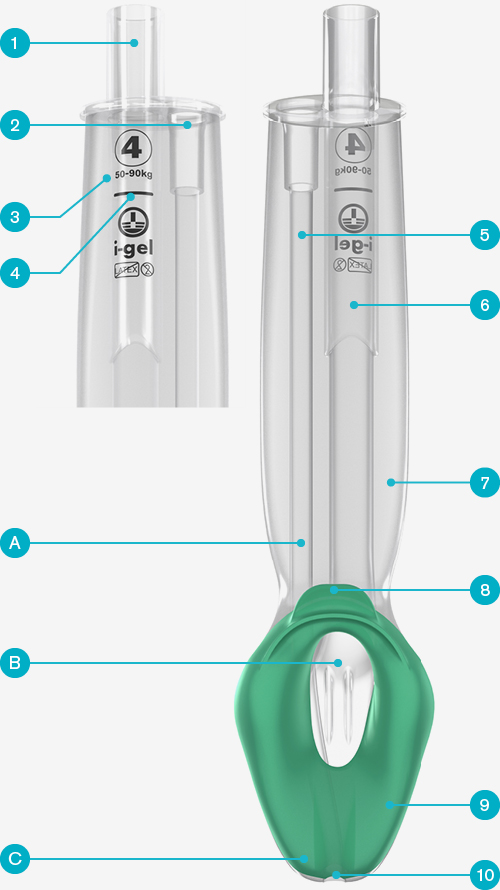

1. 15 mm connector - Reliable connection to any standard catheter mount or connection
2. Proximal end of gastric channel
3. Clearly displayed product information - For quick easy reference. Includes confirmation of size and weight guidance
4. Position guide
5. Gastric channel - Enhances patient safety by providing a mechanism for the management of regurgitant fluid
6. Integral bite block - Reduces the possibility of airway channel occlusion
7. Buccal cavity stabiliser - Aids insertion and eliminates the potential for rotation
8. Epiglottic rest - Reduces the possibility of epiglottis ‘down folding’ and airway obstruction
9. Non-inflatable cuff - Eliminates the need for cuff inflation after insertion, allowing easy and rapid insertion
10. Distal end of gastric channel
A. Larger gastric channel - To enable insertion of a a larger gastric tube
B. Intubation ramp - To optimise use as a conduit for intubation
C. Longer cuff tip - To help enhance the oesophageal seal
Ordering information

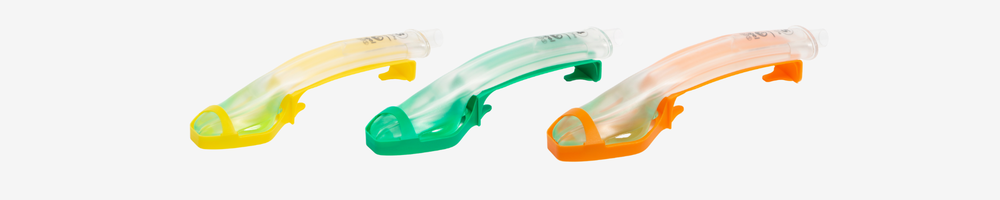

i-gel® Plus-A is available in three adult sizes. Each device is supplied sterile in a clear rigid pack. This unique design ensures protection of the device both in transit and storage. i-gel® Plus-A is supplied in boxes of 10 units.
| Code | Description | Size | Weight | Colour | Box Quantity |
| 8905000 | i-gel® Plus A, supraglottic airway | 5 large adult | 90+ kg | orange | 10 |
| 8904000 | i-gel® Plus A, supraglottic airway | 4 medium adult | 50 - 90 kg | green | 10 |
| 8903000 | i-gel® Plus A, supraglottic airway | 3 small adult | 30 - 60 kg | yellow | 10 |
If you would like to try any of the i-gel® products or maybe just ask a question then please get in touch
